IG Steel Lintels for Building & Masonry Projects
IG Lintels are designed to provide structural support over openings in brickwork and blockwork, making them suitable for a wide range of residential and commercial building projects.
Our range includes IG cavity wall lintels, single-leaf steel lintels and box lintels, with different sizes available to suit the wall construction, cavity width, opening and required load.
Choosing the Right IG Lintel
Selecting a lintel isn't simply a case of matching its length to the opening. The wall construction, cavity width, masonry configuration and load being supported all need to be considered.
IG uses individual product codes to identify lintels designed for different applications. For example, the L1/S range covers standard-load cavity wall applications, while other profiles are designed for single-leaf or box-lintel applications.
Always check the individual product specification before ordering. If you're unsure which lintel you need, speak to the Beesley & Fildes team for help selecting a suitable product for your project.
IG Lintels FAQs
What is an IG lintel?
An IG lintel is a structural lintel manufactured by IG Lintels for supporting masonry above openings such as windows and doors. IG manufactures lintels for a variety of wall constructions, including cavity wall, single-leaf and solid wall applications.
How do I know which IG lintel I need?
Start by checking your wall construction, cavity width, size of the structural opening and the load the lintel will need to support. These factors determine which lintel profile and specification is suitable. If you're unsure about the structural load, seek appropriate technical advice before ordering.
What size IG lintel do I need?
The lintel needs to span the structural opening while providing the required bearing at each end. The overall lintel length will therefore be greater than the width of the opening. Check the specification and installation requirements for the individual IG lintel before choosing a length.

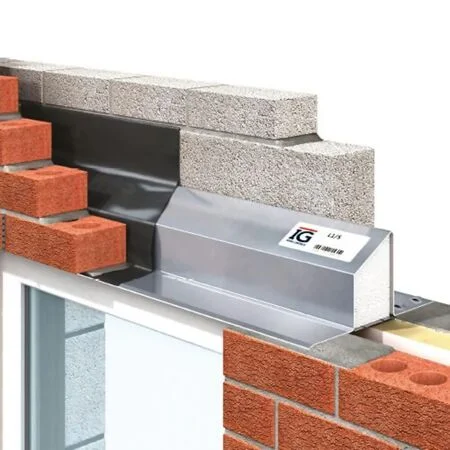

What is a cavity wall lintel?
A cavity wall lintel is designed to support masonry above an opening in a wall constructed with separate inner and outer leaves and a cavity between them. IG produces lintels for a range of cavity widths and load requirements.
What is a box lintel?
A box lintel is a steel lintel with a box-shaped profile used to support masonry over an opening. The correct box lintel will depend on factors including the wall construction, wall depth, opening and structural load.
Can IG lintels be used above windows and doors?
Yes. Steel lintels are commonly installed above structural openings such as windows and doors to transfer the masonry load around the opening. The lintel selected must be appropriate for the construction and expected load.
Can I order IG Lintels online from Beesley & Fildes?
Yes. Browse the IG Lintels available from Beesley & Fildes online, select the required size and check the available delivery or collection options on the individual product page.
Complete Your Project
Alongside our range of IG Lintels, Beesley & Fildes stocks the building materials you need to complete your masonry work, including bricks, concrete blocks, cement and mortar and wall insulation.
