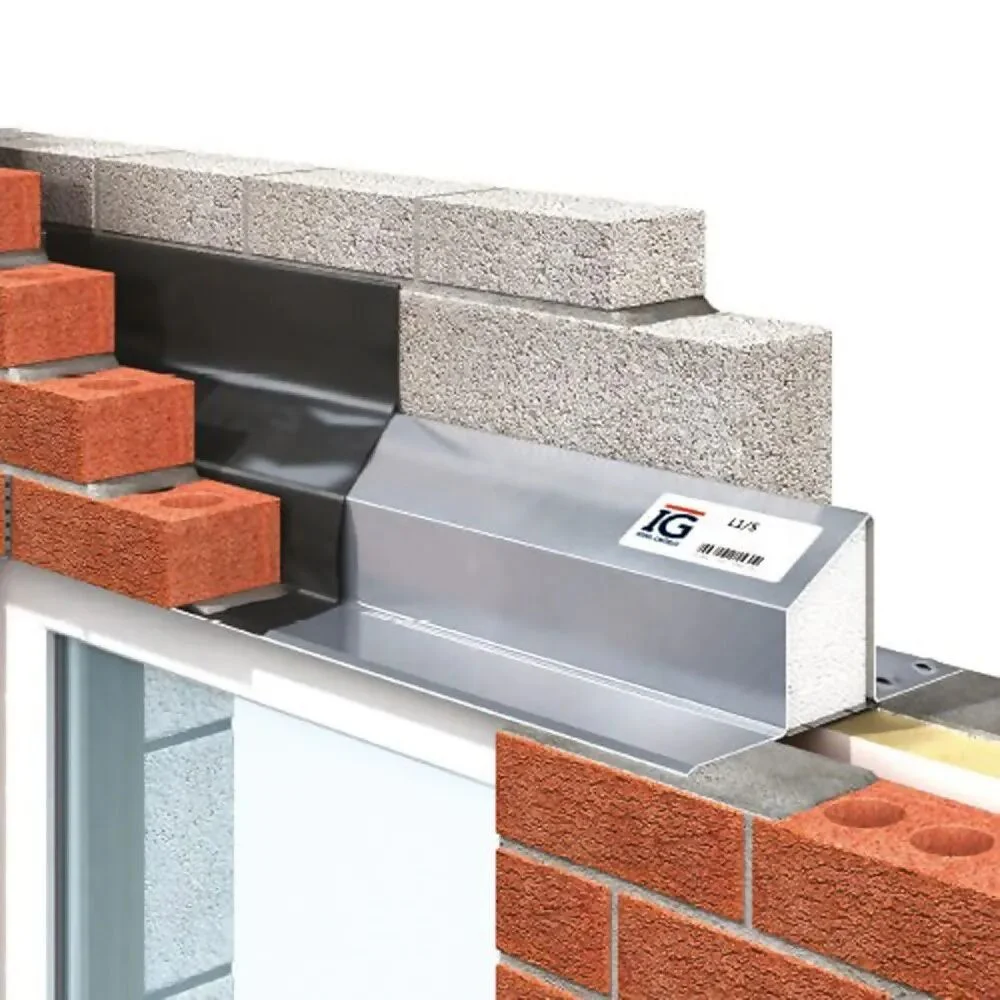

IG Lintel L1/S 100 2100mm

For a wider door or window opening in a standard cavity wall, the IG L1/S 100 2100mm gives a straightforward, proven solution. The profile is made for 90–105mm cavities, with a 102mm outer leaf and 100mm inner leaf, and is intended for standard loading conditions.

At 2100mm long, this version has a listed height of 123mm and a 2.0mm steel thickness.

IG publishes total UDL values of 21kN at a 3:1 load ratio and 17kN at 19:1. It is suited to new-build and refurbishment work where the L1/S 100 profile has been specified.

Check the actual wall build-up and design loads before installation, and follow IG’s guidance for bearing, DPC and masonry above the lintel.

• Brand: IG Lintels
