Insulate Thermal Deck Board Eco 66mm - Pack of 4 - 1.42m²
Insulate Thermal Deck Board Eco is a practical insulated loft boarding system designed to create useful, walk-on storage space while improving the thermal performance of your loft.

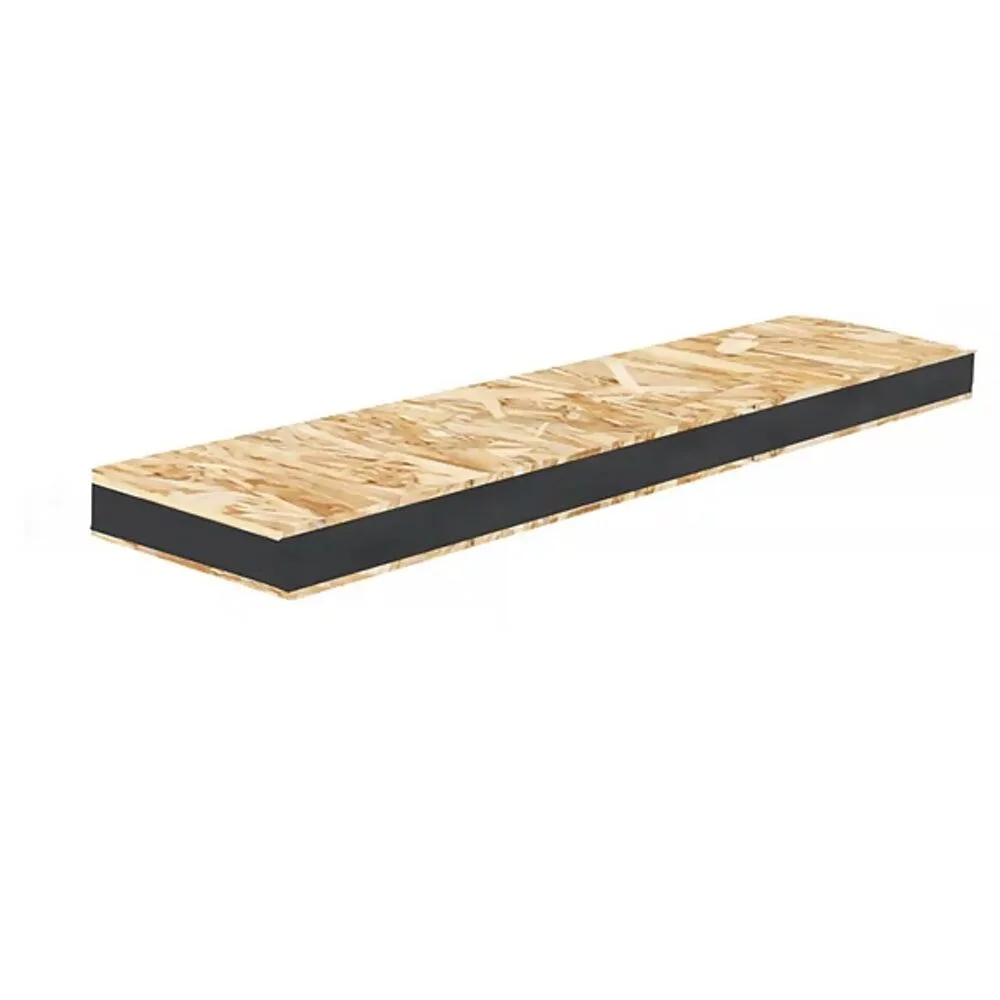

Each 66mm panel combines durable OSB/3 facings with a high-performance Stylite PlusTherm grey EPS insulation core, giving you insulation and a strong boarding surface in a single product. This removes the need for separate loft legs, jacks, spacers or brackets and makes it a straightforward option for both DIY installations and professional loft upgrades.
The Eco board uses a simple butt-jointed profile, making it easy to trim and adjust on site. This makes it particularly useful in lofts with restricted access, irregular layouts or areas where boards need to be cut around existing services.

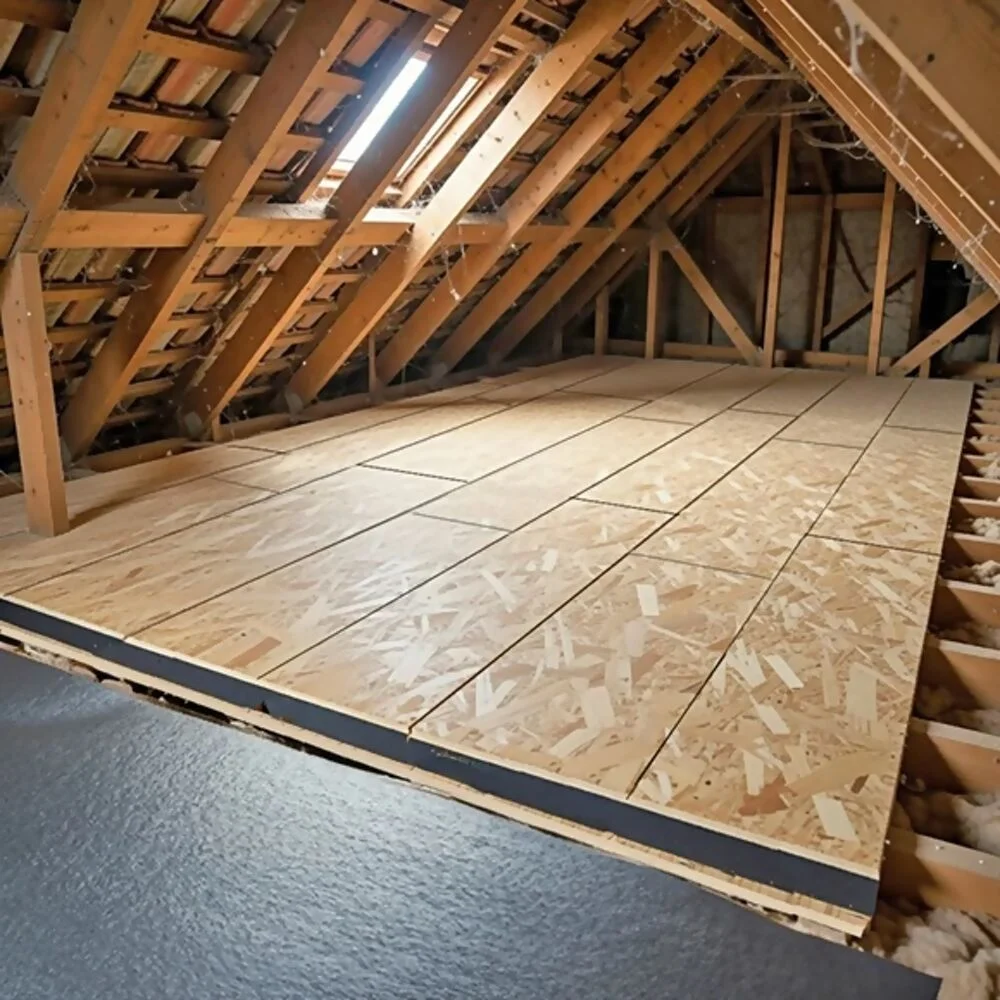

Once installed, the boards provide a stable, fully walk-on surface suitable for general household storage and can also be used to create safe maintenance walkways to items such as water tanks, boilers and solar equipment.
With a U-value of approximately 0.54 W/m²K, the Eco board provides a cost-effective way to improve loft insulation without sacrificing valuable storage space. When installed over approximately 130mm of suitable mineral wool insulation, the complete build-up can achieve an overall U-value of approximately 0.18 W/m²K, subject to the existing construction and installation.
Product Details
-

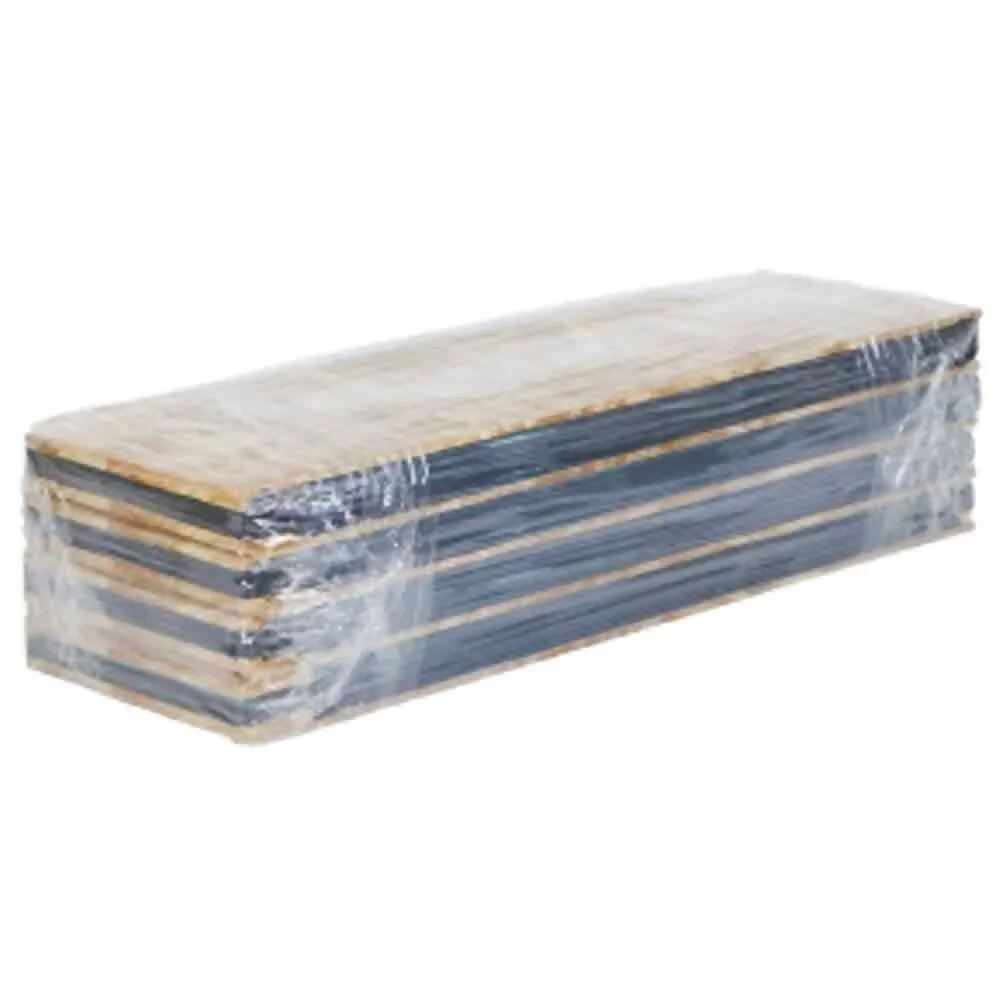

Pack quantity: 4 boards
-
Board dimensions: 1190mm (L) x 295mm (W) x 66mm (T)
-
Pack coverage: 1.42m²
-
Board construction: Structural Insulated Panel (SIP)
-
Facing: OSB/3 to both sides
-
Insulation: Stylite PlusTherm grey Expanded Polystyrene (EPS)
-
Typical U-value: 0.54 W/m²K
-
Joint type: Butt jointed
-
Manufactured: UK
-
Suitable for: Non-habitable loft storage, maintenance walkways and suitable warm roof applications
Features & Benefits
Insulation and Boarding in One
Combines loft insulation and a durable walk-on surface in a single panel, reducing the number of separate products required during installation.
Creates Useful Loft Storage
Provides a strong, stable platform for general household storage while helping to maintain the insulation beneath the loft floor.
66mm Slimline Construction
The lower-profile Eco board is a practical choice where additional loft floor height needs to be kept to a minimum.
Grey EPS Insulation Core
Uses Stylite PlusTherm grey EPS to provide reliable thermal insulation within a lightweight structural panel.
Durable OSB/3 Facings
OSB/3 boards are used on both sides of the insulation core, creating a strong structural panel suitable for walk-on loft applications.
Easy to Cut and Fit
The butt-jointed design allows boards to be trimmed and adjusted on site, making installation easier around awkward loft layouts and existing services.
No Loft Legs or Spacers Required
The insulated structural panel removes the need for traditional loft legs, jacks, spacers or brackets, helping to simplify installation.
Helps Protect Existing Loft Insulation
Creates the raised storage surface without compressing mineral wool insulation between the joists, helping to avoid the loss in thermal performance associated with squashed loft insulation.
Suitable for Maintenance Walkways
Ideal for creating a solid route from the loft hatch to boilers, water tanks, solar inverters and other equipment that may require occasional access.
Cost-Effective Loft Upgrade
The Eco version offers a lower-cost alternative to the thicker Premium board where maximum thermal performance is not required.
Manufactured in the UK
Designed and manufactured in the UK for use as an insulated structural loft boarding system.
Thermal Performance
The 66mm Eco panel achieves a typical U-value of 0.54 W/m²K.
When used in conjunction with approximately 130mm of Rockwool or equivalent insulation between the joists, the complete insulation build-up can achieve an overall U-value of approximately 0.18 W/m²K, depending on the existing construction and installation.
Please note: Insulate Thermal Deck Board Eco is intended primarily for non-habitable loft storage and access. Where the boards are used as part of a warm flat roof construction, an approved vapour barrier should be installed below the panels and the proposed build-up should be checked with Building Control.
