INSULATE. BOARD. STORE.
Create practical loft storage while improving your home's insulation at the same time.

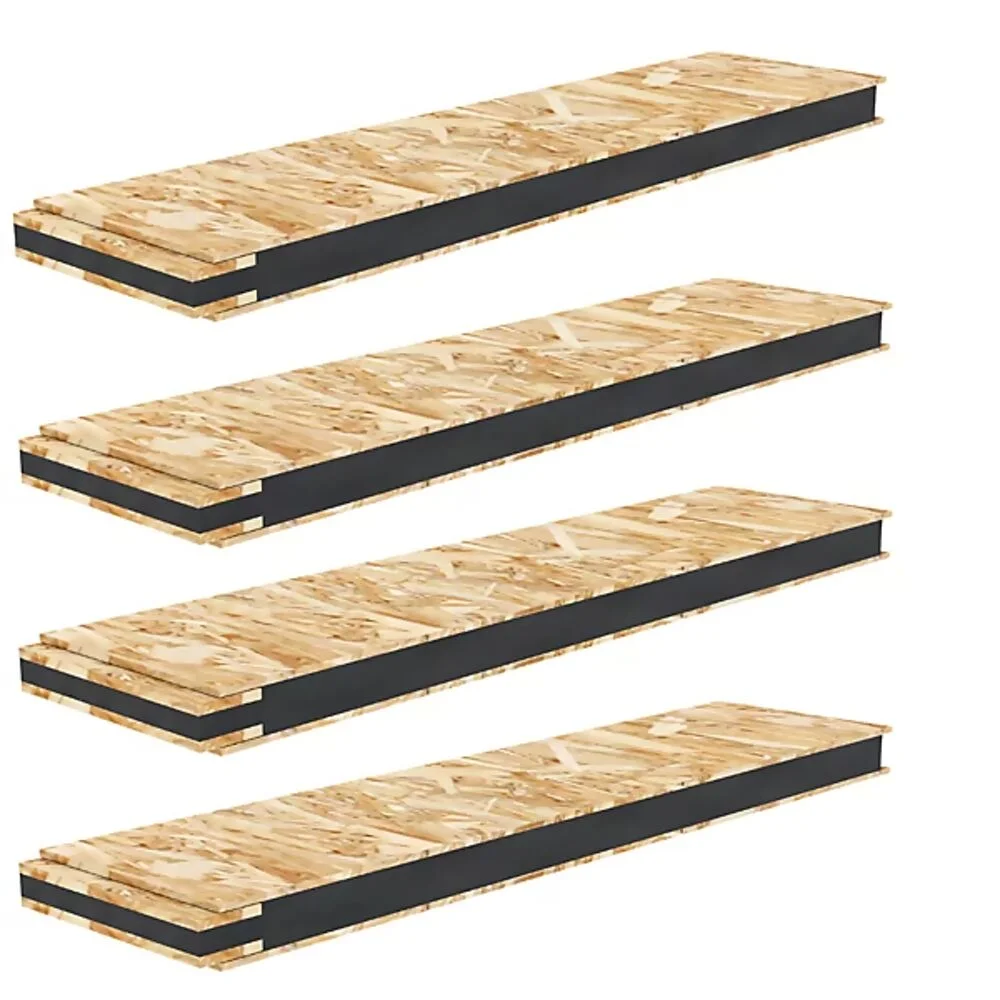

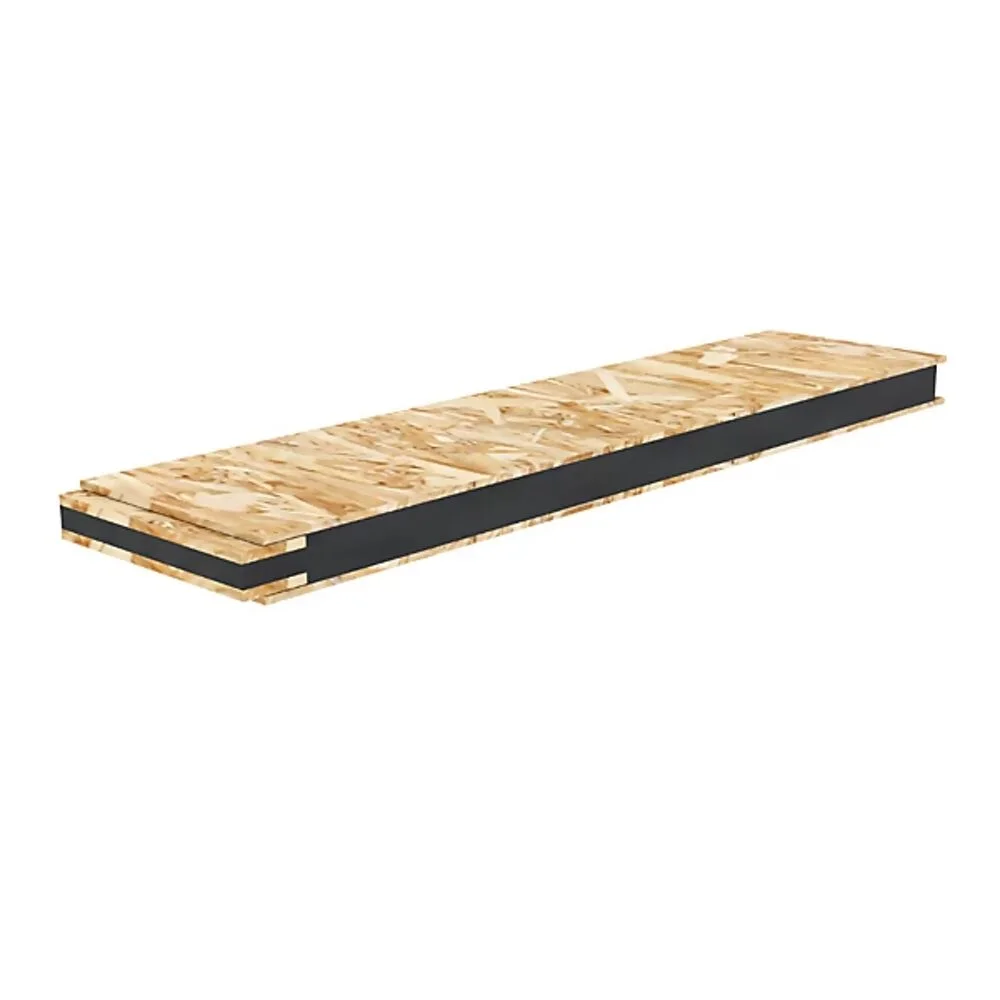

Premium Insulated Loft Boards combine a durable OSB/3 surface with a 75mm graphite-enhanced EPS insulation core and integrated connecting spline, helping create a strong, continuous storage deck in non-habitable loft spaces.
Pack Coverage: 1.42m²
Pack Quantity: 4 Boards
Board Size: 1200 x 295 x 91mm
Insulation Core: 75mm Graphite EPS
Joint Type: Connecting Spline
WHY CHOOSE PREMIUM INSULATED LOFT BOARDS?
- Insulation and boarding in one – creates useful loft storage while adding insulation.
- 75mm graphite EPS core – provides improved thermal performance.
- OSB/3 facing – creates a strong, durable walk-on storage surface.
- Connecting spline system – helps boards align securely during installation.
- Easy to cut and fit – suitable for DIY and professional loft upgrades.
- Ideal for non-habitable loft storage – perfect for boxes, seasonal items and general household storage.
ECO OR PREMIUM – WHICH SHOULD I CHOOSE?
| | Eco 66mm | Premium 91mm |
|---|
| Pack Coverage | 1.42m² | 1.42m² |
| Overall Thickness | 66mm | 91mm |
| Joint | Butt Joint | Connecting Spline |
| Insulation | Good | Higher |
| Finished Floor Height | Lower | Higher |
| Best For | Cost-effective storage | Higher-performance upgrade |
Choose Eco if:
You want a cost-effective insulated loft storage solution and want to keep the finished floor height as low as possible.
Choose Premium if:
You want higher insulation performance and the added convenience of the connecting spline system.
WHAT ARE PREMIUM LOFT BOARDS BEST USED FOR?
Premium Insulated Loft Boards are ideal for:
- Creating practical storage space in domestic lofts
- Boarding areas around the loft hatch
- Improving loft insulation while creating a usable storage deck
- Upgrading older loft spaces
- DIY loft storage projects
- Professional loft insulation upgrades
Please Note:
These boards are intended for storage areas within non-habitable loft spaces. They are not designed to create a structural floor for bedrooms, offices or other habitable rooms.
HOW TO INSTALL PREMIUM INSULATED LOFT BOARDS
1. Check the Loft
Inspect the timber joists and identify any electrical cables, pipework, downlights, water tanks or areas that may require future access.
2. Check Existing Insulation
Ensure existing loft insulation is correctly installed and isn't compressed when the boards are fitted.
3. Plan the Layout
Lay the boards across the timber joists. Stagger adjoining joints where possible rather than lining every board joint up.
4. Apply Adhesive
Apply the recommended adhesive between adjoining panels.
5. Connect the Boards
Push the panels together so the projecting connecting spline locates securely into the adjoining board.
6. Fix the Boards
Fix through the OSB and insulated panel into the timber joists using suitable timber screws.
7. Continue Across the Storage Area
Cut boards where required around roof timbers and services, while keeping anything requiring maintenance accessible.
WHAT WILL I NEED?
Premium Insulated Loft Boards
150mm Timber Screws
D4 PU Adhesive
Tape Measure
Pencil
Straight Edge
Saw
Drill / Driver
Fixing Guide:
As an estimating guide, allow approximately 32 x 150mm screws per pack based on typical 400mm joist centres.
A box of 100 x 150mm screws can therefore cover approximately 3 packs of Premium Insulated Loft Boards.
PRODUCT SPECIFICATION
Product Code: INSUD0401D91-4PK
Pack Quantity: 4 Boards
Coverage: 1.42m²

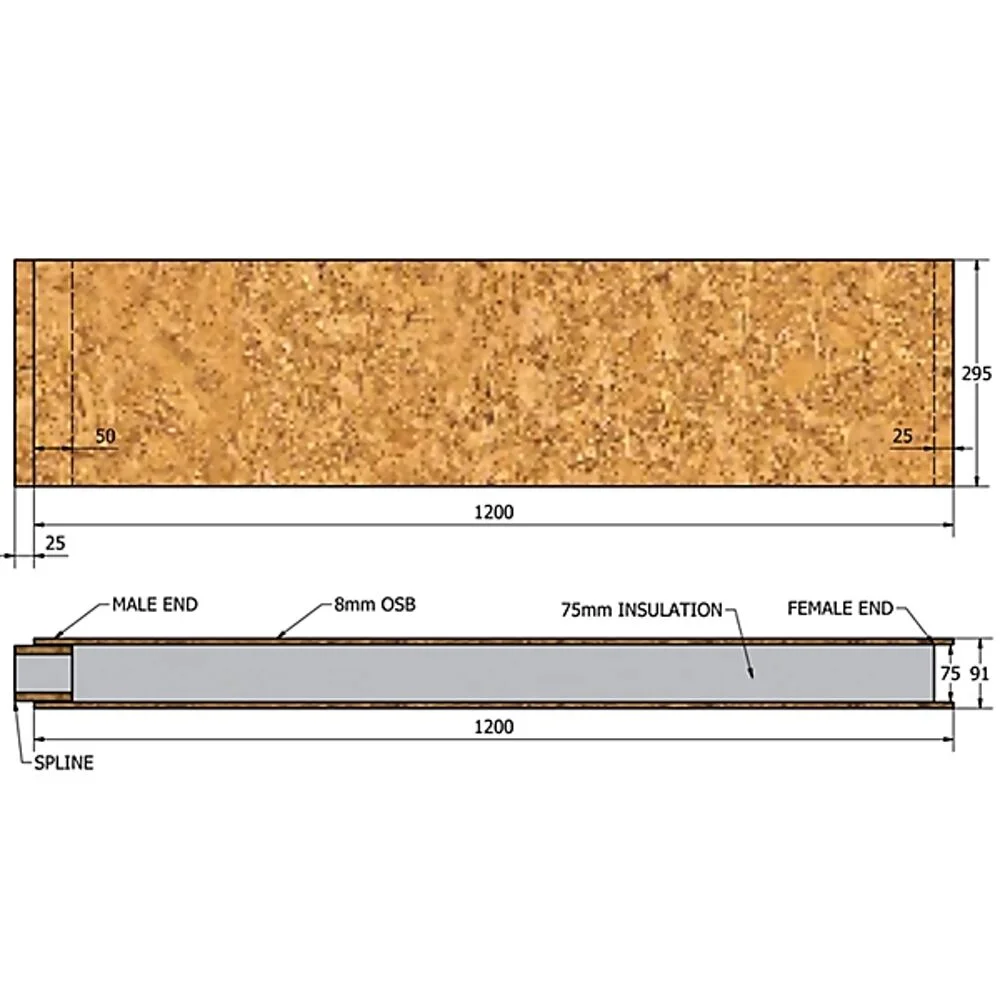

Board Size: 1200 x 295 x 91mm
Overall Thickness: 91mm
Insulation Thickness: 75mm
Insulation: Graphite-Enhanced EPS
Facing: OSB/3
Joint Type: Connecting Spline
Application: Non-Habitable Loft Storage
IMPORTANT INSTALLATION INFORMATION
Do not compress existing mineral wool insulation.
Maintain suitable ventilation within the loft space.
Do not permanently cover electrical equipment, recessed lighting or services that require access.
Premium Insulated Loft Boards are intended to create storage flooring within a non-habitable loft and should not be treated as a structural floor for a loft conversion.
Actual fixing requirements may vary depending on joist spacing, board cuts and the loft construction.
