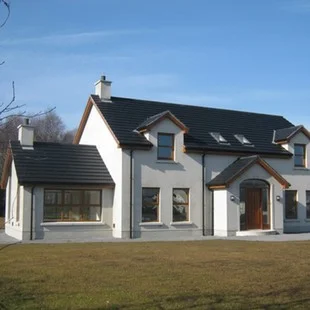

Lagan Flat Concrete Roof Tile Anthracite (Pack:192) Ref AG0201

(0 reviews)
| Write review
Product Code: 4103LAG010

Flat Top Concrete Tile Anthracite

Lagan Flat Concrete Tile Anthracite Ref AG0201

Specification

Size of Tile Overall 420 x 330mm
Minimum Pitch 17.5 degrees (for rafter length over 8 metres or sites with a high degree of exposure please consult our technical department)
Maximium Pitch 90 Degrees (subject to fixing specifications
Headlap (minimum) 75mm above 25 degrees // 100mm at 25 degrees or below
Gauge (maximum) 345mm
Cover width of one tile (nominal) 295mm
Covering Capacity (Headlap 75mm) 9.8 tiles / sq metre
Covering Capacity (Headlap 100mm) 10.6 tiles / sq metre
Hanging Length (nominal) 400mm
Weight per 1000 (approx) 5.5 tonnes
Rcommended Batten size (see BS5534) . Rafter centres up to 600mm 50 x 25mm
Recommended Nail size 50mm x 3.35mm

Specifications
  • Brand: Lagan
  • Colour: Anthracite
  • Type: Interlocking
