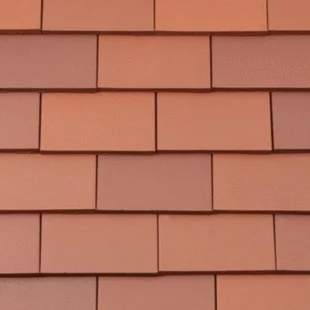

Redland Rosemary 10" x 6" Tile Red 1C
The Rosemary name is synonymous with clay plain tiles, adding distinction and character to pitched roofs for over 175 years. Today, a range of single and cross-camber tiles combine the quality of hand-crafted clay with the reliability of modern machine-made techniques. Produced from the finest clays, Rosemary is offered in a range of weathered, brindled and single colours that create striking and attractive roofs.
The latest addition to the range is the Heather Brindle, an orange sanded tile, with distinct purple brindling to create strikingly attractive roofs.
| Rosemary Clay Classic | Technical Data | |
|---|
| Size | 265 x 165 mm | |
| Minimum Pitch | 35° | |
| Maximum Pitch | 90° | subject to fixing specification |
| Minimum Headlap | 65 mm
35 mm | below 90°
at 90° |
| Maximum Headlap | 88 mm | |
| Minimum Gauge | 88 mm | |
| Maximum Gauge | 100 mm
115 mm | below 90°
at 90° |
| Hanging Length | 255 mm | approx |
| Linear Cover of 1 Tile | 165 mm | |
Covering Capacity
(net) | 60 tiles/m²
52 tiles/m² | below 90°
at 90° |
| Laid Weight (Below 90°) | 78 kg/m²
|
|
| Laid Weight (At 90°) | 68 kg/m²
| |
| Weight per 1000 Tiles | 1.30 tonnes
1.11 tonnes | |
| Weight per Pallet | 1.11 tonnes
1.00 tonne | |
| Battens Required | 10 m/m²
8.7 m/m² | below 90°
at 90° |
| Batten Size | 38 x 25 mm | rafter centres up to 600 mm |
| Nail Size | 40 x 2.65 mm | |
| Tiles per Pallet | 840 | |
| Tiles per Pack | 14 | |
| Packs per Pallet | 60
|
